Silver Shoulder Milling Inserts Aluminum Cutting Tools High Temperature Resistance
Specifications
| Model No. | Basic Dimension(mm) |
| L | I.W | S | Φd | r |
| FAPKT11T304 | 12.240 | 6.50 | 3.60 | 2.80 | 0.40 |
| FAPKT11T308 | 12.240 | 6.50 | 3.60 | 2.80 | 0.80 |
| FAPKT11T312 | 12.240 | 6.50 | 3.60 | 2.80 | 1.20 |
| FAPKT11T316 | 12.240 | 6.50 | 3.60 | 2.80 | 1.60 |
| FAPKT160408 | 17.877 | 9.33 | 5.76 | 4.40 | 0.80 |
Description
1.About cemented carbide material:
1)Cemented carbide is a kind of alloy material made of hard compound of refractory metal and bonding
metal by powder metallurgy process.
2)Hard alloy has high hardness, wear resistance, good strength and toughness, heat resistance, corrosion
resistance and a series of excellent properties.
2.The advantages of cemented carbide coating:
1) As the surface coating material has extremely high hardness and wear resistance, the coated cemented
carbide allows higher cutting speed than the uncoated cemented carbide, thus improving the processing
efficiency; Or can greatly improve tool durability at the same cutting speed.
2) Because the friction coefficient between the coated material and the processed material is small, the
cutting force of the coated inserts is reduced compared with that of the uncoated inserts.
3) coating inserts processing, the processed surface quality is better.
4) Because of the good comprehensive performance, the coating inserts has good versatility. A coated
grade inserts has a wide application range.

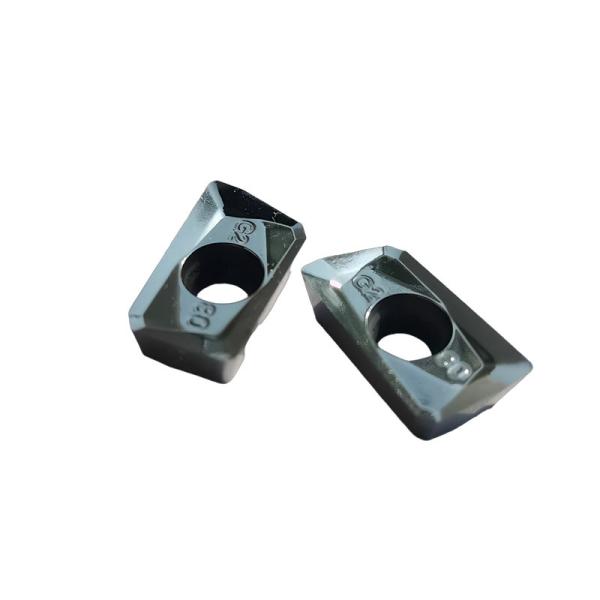

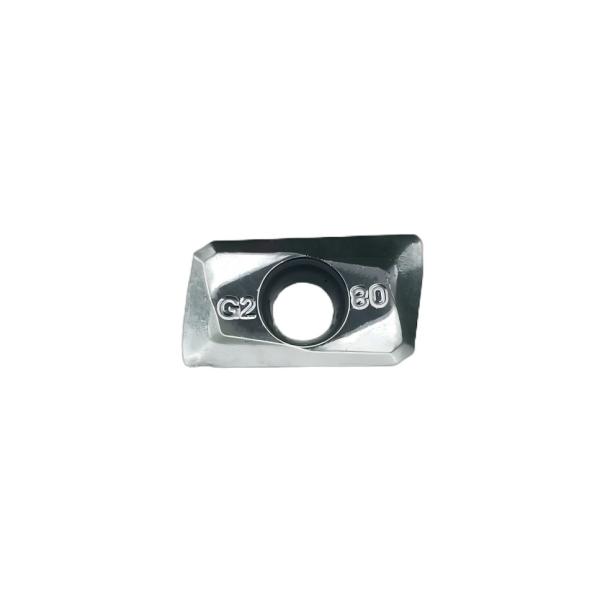

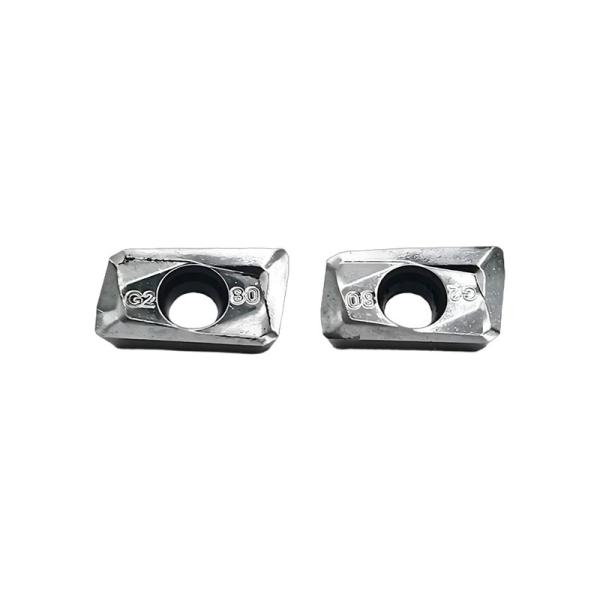

Product images
About Metallic Cutting Tool
Our carbide inserts has a very high chemical stability,cutting process, the friction of coefficient is small ,low
cutting temperature ,can prevent the process of cutting the inter-atomic diffusion of materials, anti-stick knife
and wear resistance is also much higher than the hard alloy .but also has better red hardness and anti-crescent
crater wear performance.
